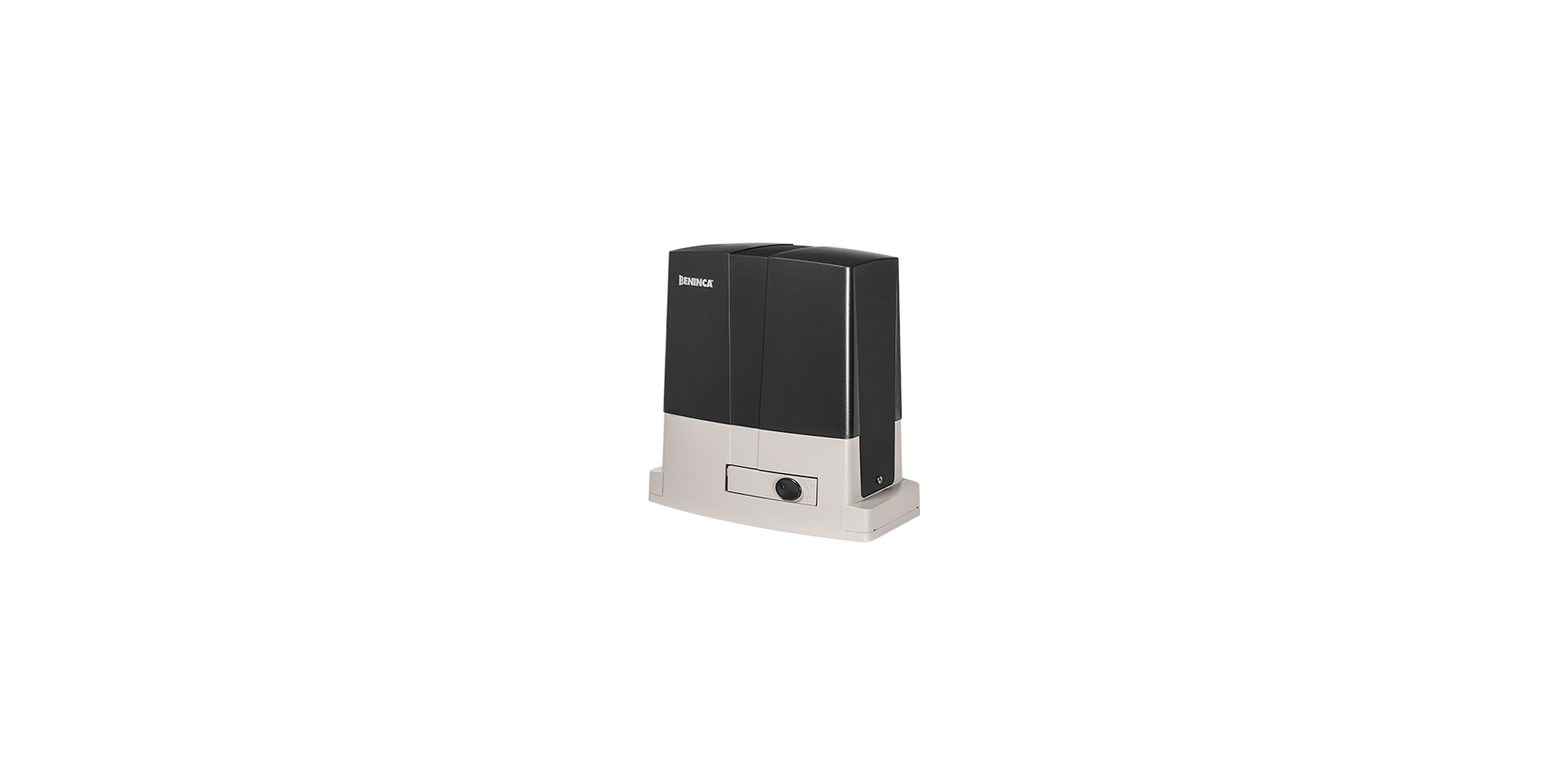

230 Vac gear motor with integrated control unit and encoder
Residential use
230 Vac
Up to 600 kg
Control unit that manages the encoder for maximum precision during the automation manoeuvring steps
433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)
Prepared for the connection of X.BE (KNX) and Q.BE (MQTT) accessories
Designed to manage the control unit using the BeUP app and pro.UP accessory which, by recreating the control unit menu, makes it possible to adjust parameters and logic, read error messages and update the firmware. It is possible to perform remote diagnostics, check the status of the gate and send commands
64 transmitters storable inside the receiver
Standby power consumption complies with European regulation (EU) 2023/826
230 Vac

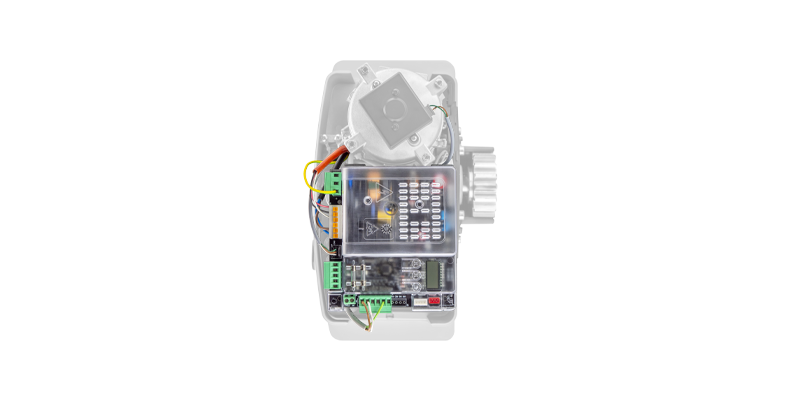

230 Vac electromechanical gear motor with built-in control unit equipped with 230 Vac switching power supply | Standby power consumption complies with European regulation (EU) 2023/826 | The control unit, located at the top of the motor, facilitates wiring operations | The encoder device guarantees anti-crushing safety and precision during gate movement | Equipped with magnetic limit switches (BULL6M SE.S) | The BULL6MLT SE version is available with spring-loaded limit switches and without encoder, but with the option of connecting an encoder via the MAG.E accessory
Reinforced foundation plate Dima included. Dimensions 326x164.5x2 mm, motor fixing distance 301x75 mm, 4 holes Ø 8.5 mm
APPLICATION
1 actuator for sliding gates, series BULL6M SE.S and BULL6MLT SE
CONTROL UNIT POWER SUPPLY
230 Vac - 50/60 Hz
MOTORS POWER SUPPLY
230 Vac / 9A
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with ARC | Removable terminal boards | Automatic, semi-automatic and dead man’s logic | Motor limit switch inputs | Photocell input (PHO) active in both opening and closing | Photocell input (PHC) active only in closing | Input for N.C. or 8K2 sensitive edge | OPEN input configurable as pedestrian | Two outputs configurable as gate open indicator light, courtesy light, area light, second radio channel, photocell test, flashing light, alarm contact | Output for flashing light connection | Auto-set operating parameters | Separate electronic adjustments for opening and closing speeds | Adjustable slowdowns | Integrated ESA+ for energy saving | Predesigned for the operation of opposed sliding gates through SIS synchronisation board (optional) | Predesigned for connection of X.BE (KNX) and Q.BE (MQTT) accessories | Configuration, diagnostics, firmware update, and radio control management via the BeUP app, using the PRO.UP accessory | Number of operations | Programming access password | Maintenance warning | Standby power consumption complies with European regulation (EU) 2023/826
