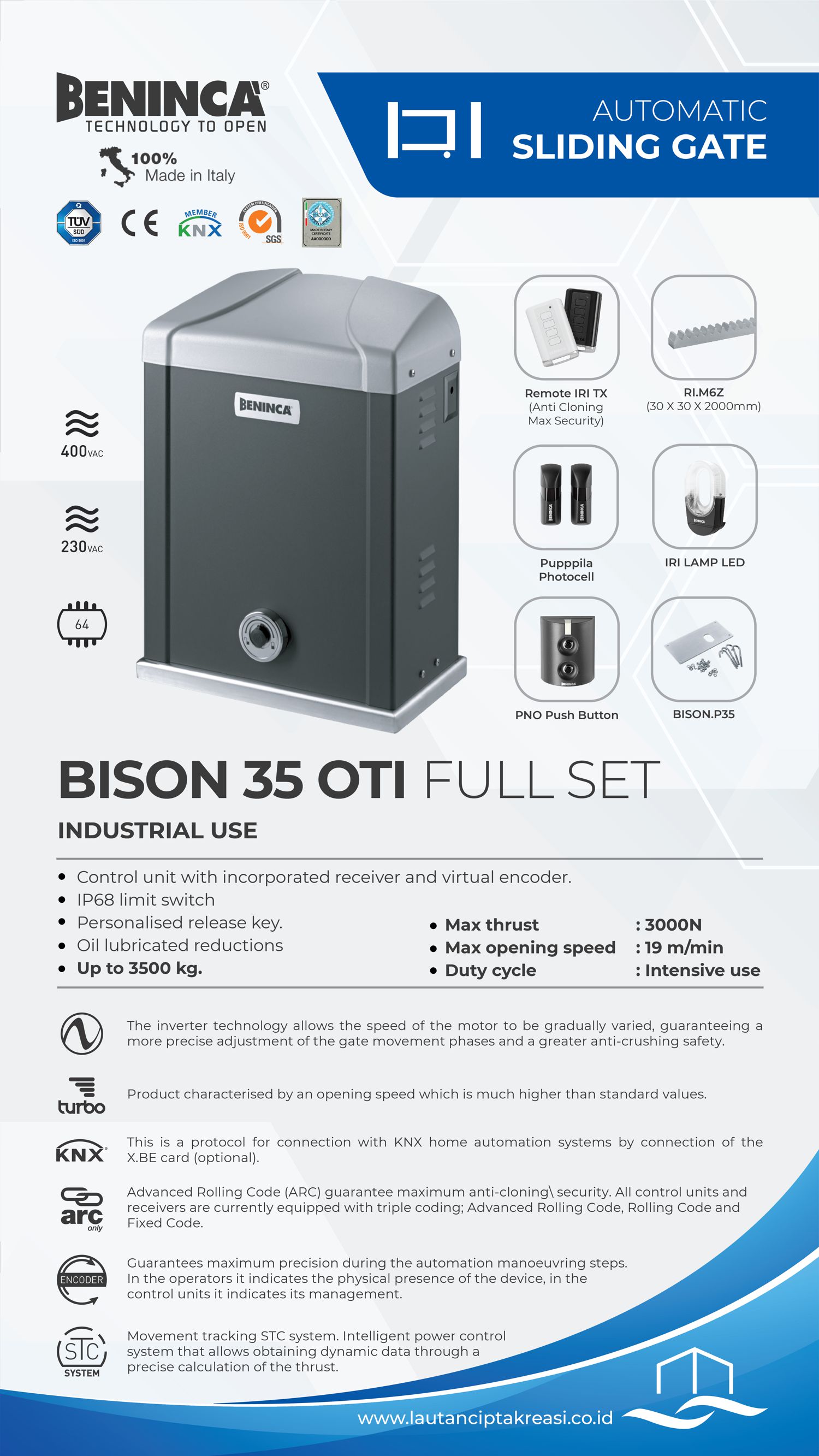

Main Features :
- Three phase electromechanical geared motor avaliable in 230 Vac ( can be connected to 230 Vac single phase network ) or 400 Vac ( can be connected to 400 Vac three phase network )
- Oil Submerged gear
- IPL 68 limit switch
- Control with built-in encoder and receiver personalised release key
- The encoder device ensures crush prevention and precision in the gate moving phases
- Ventilated for intensive use
- Full metal mechanics and oil lubrication with maximum efficiency even at low temperatures
- Casing Protective treatment and paint
- The Inverter technology allows for more precise adjustment of the gate moving phases , and increased crush prevention security
Technical Spesification
| Power Supply | 400 Vac ( 50 - 60 Hz ) |
| Motor Supply | 400 Vac |
| Max Absorbed Current | 3 A & 8 A |
| Max Thrust | 3000 N |
| Opening Speed | 10,5 m / min |
| Operation Cycle | Intensive Use |
| Protection Level | IP44 |
| Operating Temperature | -20°C / + 50°C |
| Lubrication | Oil |
| Max Gate Wight | 3500 Kg |
| Driving Gear For Rack | M6 Z13 |
| Weight | 57Kg |
