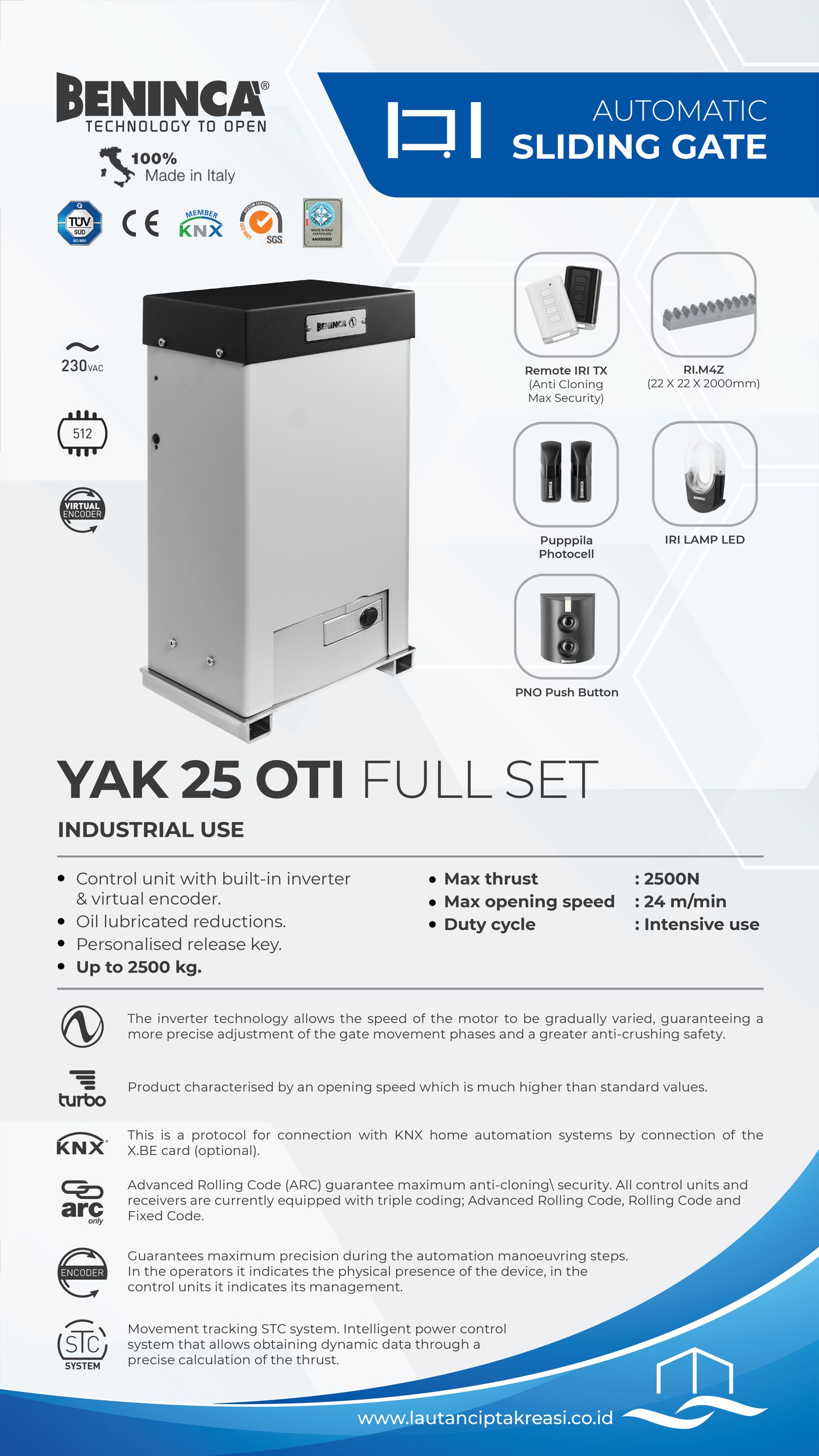

control unit with built-in inverter and virtual encoder
oil lubricated reductions
personalised release key
UP TO 2500 kg
230 Vac

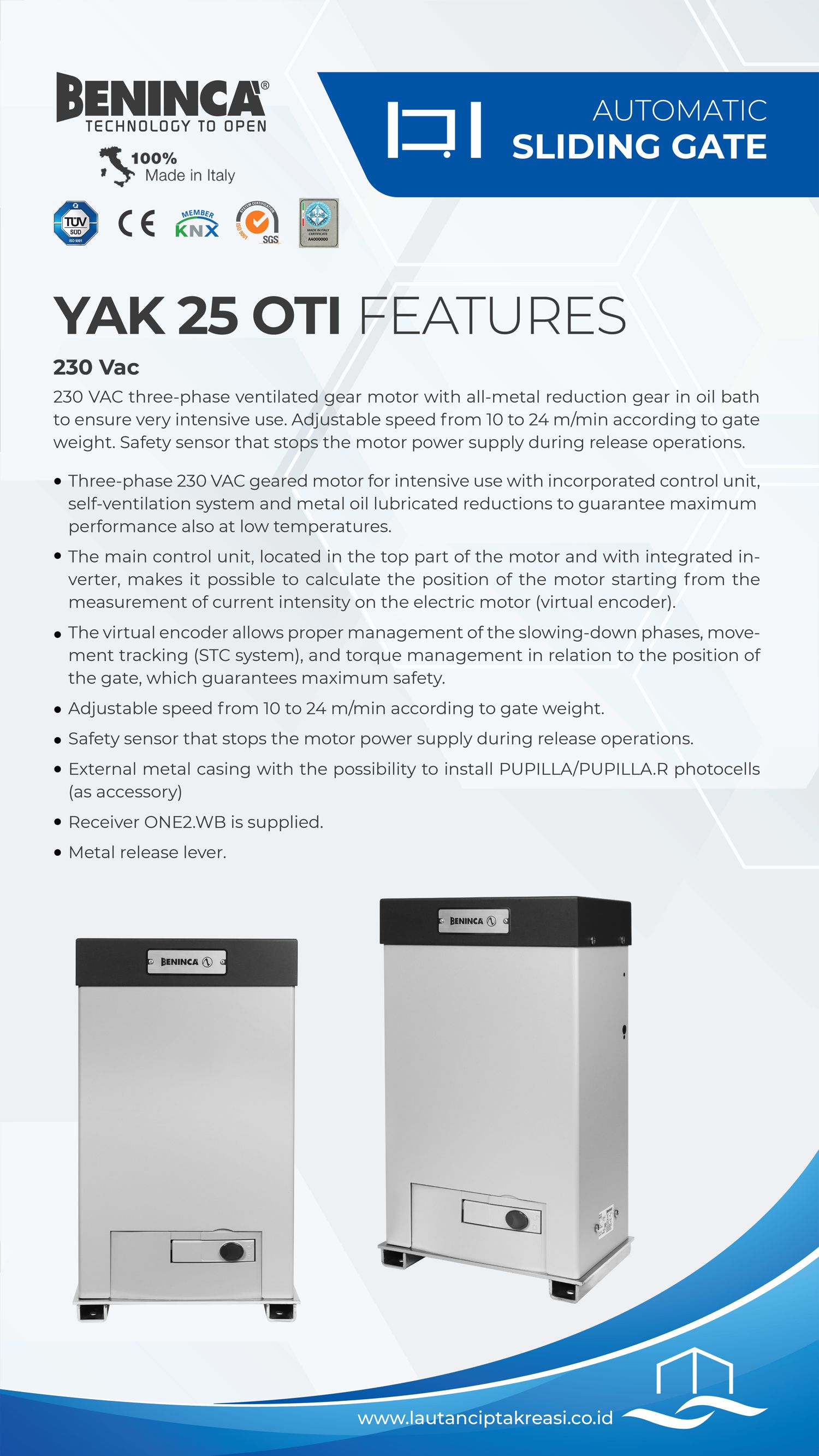

- Three-phase 230 VAC geared motor for intensive use with incorporated control unit, self-ventilation system and metal oil lubricated reduction to guarntee maximum performance also at low temperatures
- The main control unit, located in the top part of motor and with integrated inverter, makes it posiible to calculate the position of the motor starting from the measurement of current intensity on electric motor (virtual encoder)
- The virtual encoder allwos proper management of the slowing-down phases, movemnet tracking (STC system), and torque managemnet in relation to the position of the gate, which guarntees maximum safety
- Adjustable speed from 10 to 24 m/min according to gate weight
- Safety sensor that stops the motor power supply during release operations
- External metal casing with the possibility to install PUPILLA/PUPILLA.R photocells (as Accessory)

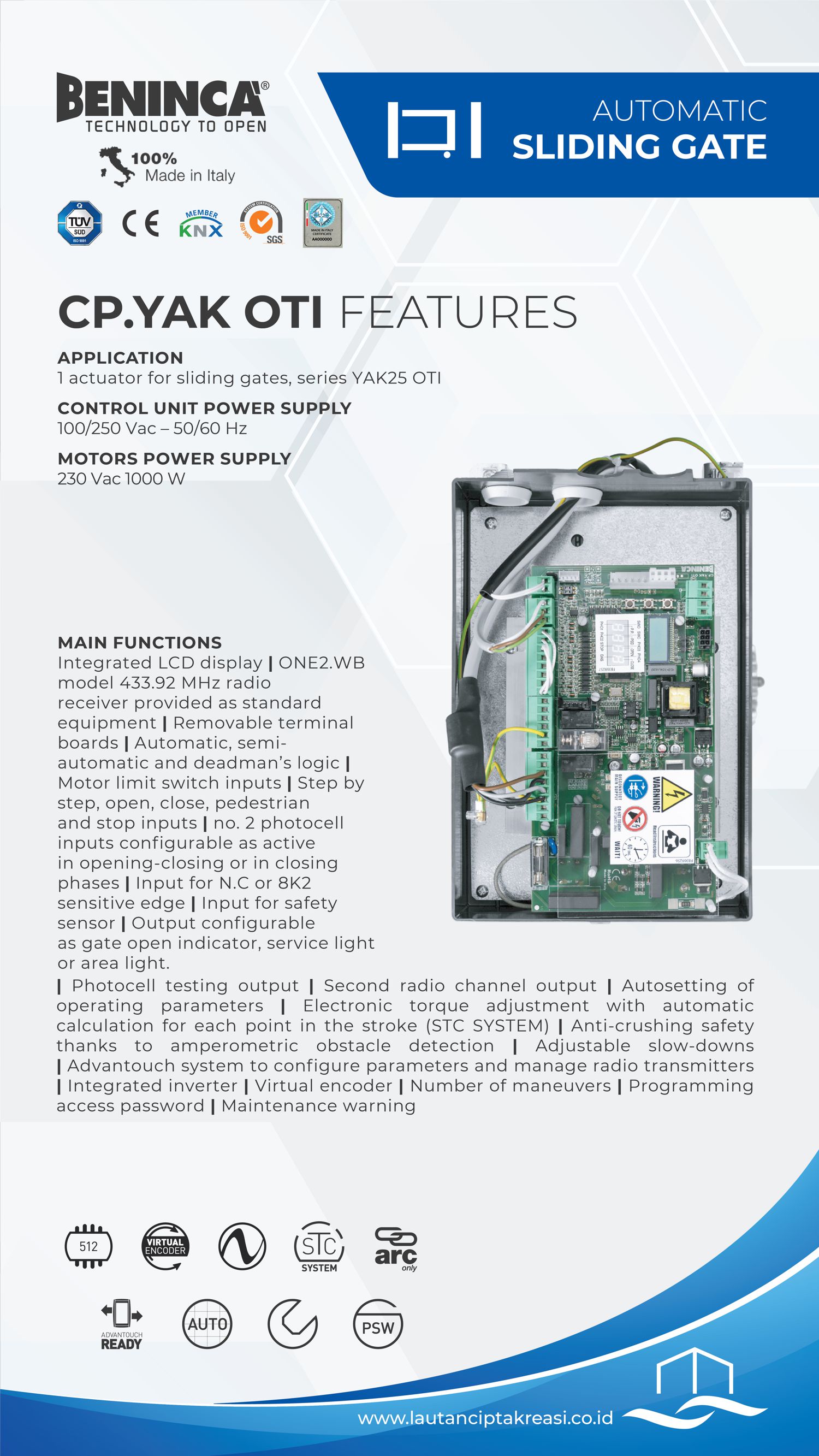

- Receiver ONE2.WB is supplied
- Metal release lever
| Power Supply | 230 Vac ( 50 - 60 Hz ) |
| Motor supply | 230 VAC |
| Max absorbed current | 4.0 A |
| Max Thrust | 2500 N |
| Max opening speed | 24 m/min |
| Duty cycle | intensive use |
| Protection level | IP44 |
| Operating temperature | -20℃ /+50℃ |
| Lubrication | OIL |
| Max gate weight | 2500 kg |
| Driving gear for rack | M4 Z18 |
| Weight | 36.3 kg |
| Items no. per pallet | 8 |
