DESCRIPTION

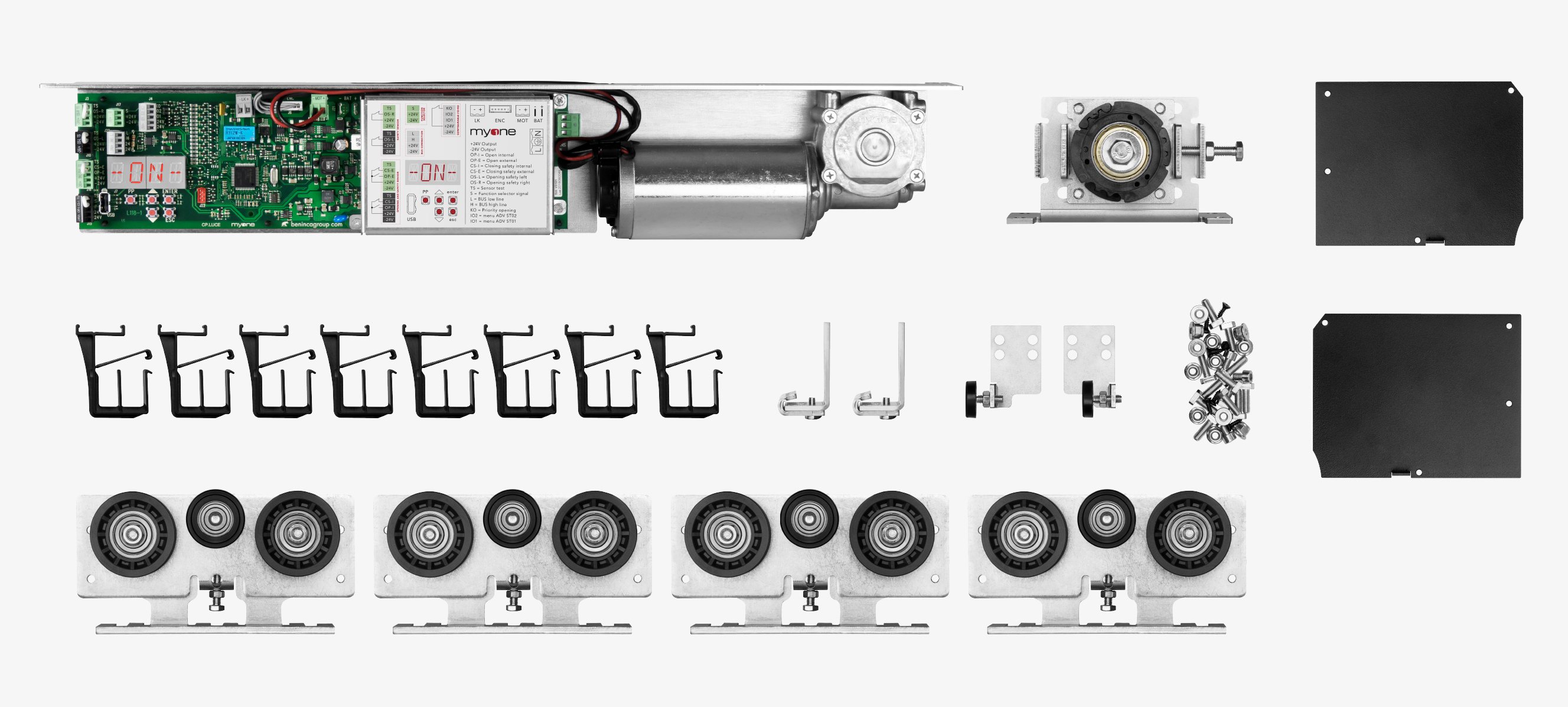

Automation for sliding doors, easy and quick to install, available for doors up to 130+130 kg or single doors of a maximum of 20 0 kg. This automation is equipped with three-wheeled carriages, which ensure a great stability of the door and an easy regulation of both height and depth.

TECHNICAL DATA
power supply full range 100÷240 Vac | 50/60 Hz
absorption 70 W
power consumption in stand-by 3 W
accessories power supply 24 Vdc = / 1 A max
max speed 1 leaf sliding door 0,8 m/s
max speed 2 leaves sliding door 1,6 m/s
max weight 1 leaf sliding door 200 kg
max weight 2 leaves sliding door 130+130 kg
type and frequency of use continuous operation = 100%
operating temperature -15°C / +50°C
protection degree IP20
memory for saving data and door regulation settings USB port
